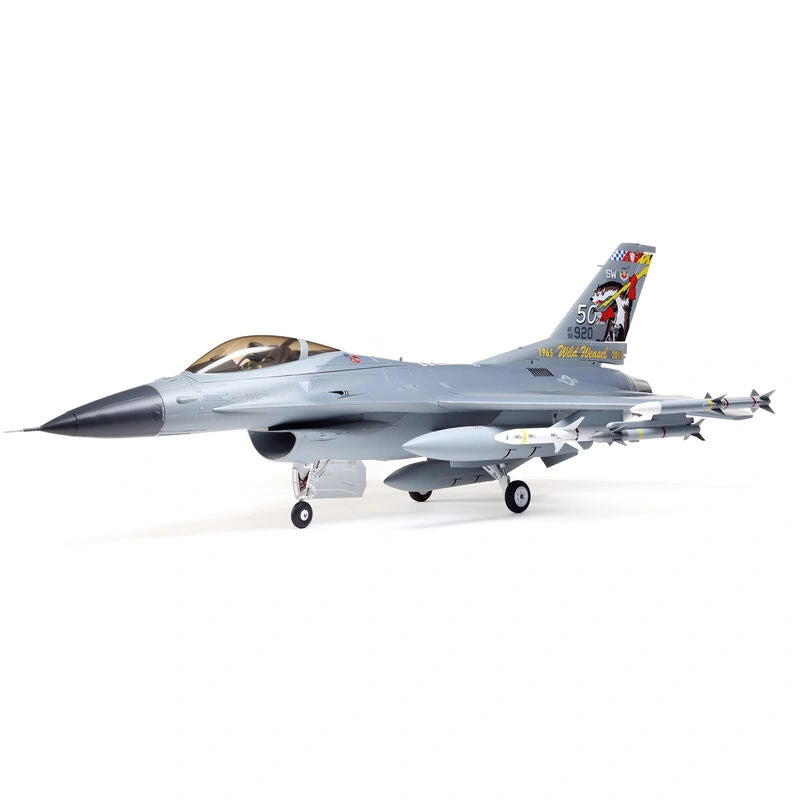

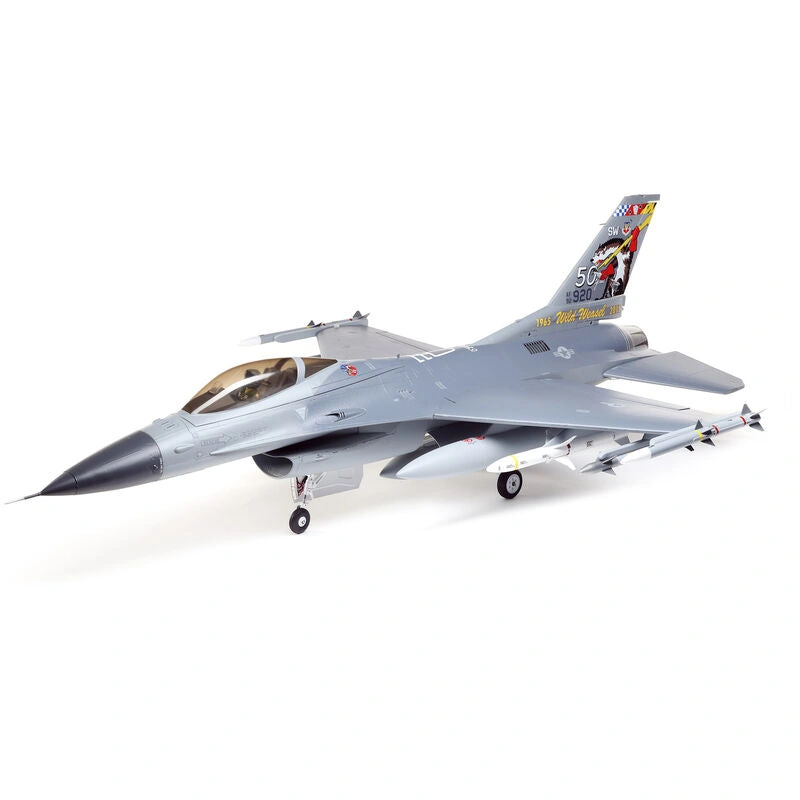

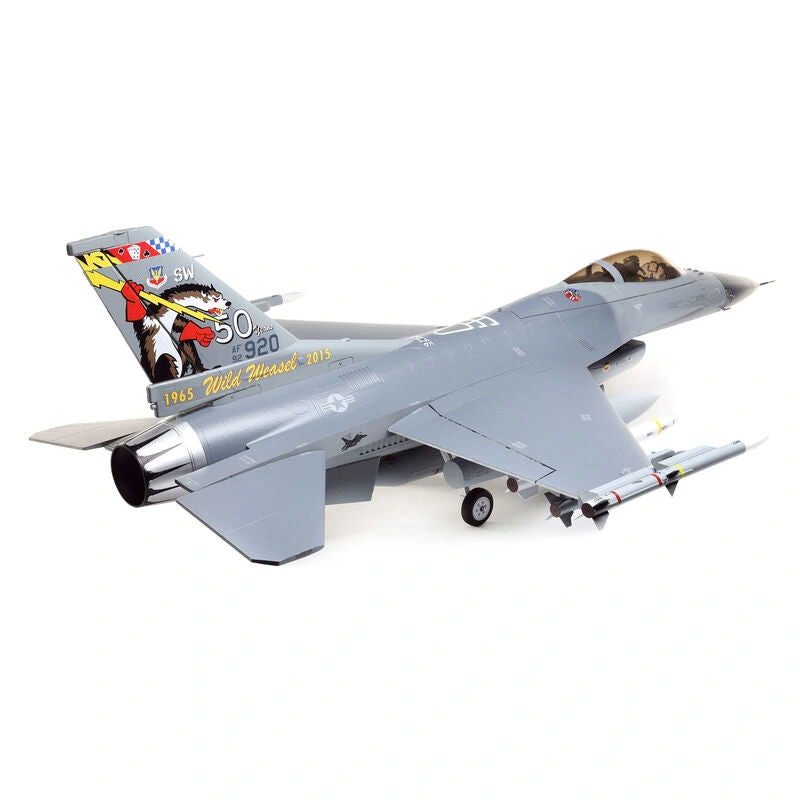

The E-flite® F-16 Falcon 80mm EDF jet is the Smartest, most detailed and best handling high-performance model of the fighter yet! Its all-new design combines Extra Scale details, functional features and more to deliver an unmatched flying experience.
- Scale replica of the world-renowned fighter flown by the U.S. and numerous allied air forces
- Extra Scale details including molded-in panel lines, simulated antennas, indicators, sensors and much more
- Functional Extra Scale features including LED navigation and landing lights, full-flying stabs and more
- Factory-installed, high-power 6S-compatible 2100Kv brushless inrunner motor and 100-amp ESC
- Spektrum™ AR637TA receiver with full-range telemetry and industry-leading DSMX® technology
In The Box
- (1) E-flite® F-16 Falcon 80mm EDF
- (1) Spektrum™ Avian™ 100A Brushless Smart ESC (installed)
- (1) 2100Kv Brushless Inrunner Motor (installed)
- (1) V2 80mm 12-Blade EDF unit (installed)
- (9) Digital, Metal-Geared Servos (installed)
- (1) Spektrum™ AR637TA 6-Channel Receiver (installed)
- (1) Electric Tricycle Retractable Landing Gear (installed)
- (1) Product Manual
Needed to Complete
- (1) Full-range 6-7+ Channel Spektrum™ DSMX®/DSM2® Compatible Transmitter
- (1) 6S 22.2V 4000–7000mAh 30+C LiPo with EC5™ or IC5® Connector
- (1) Compatible LiPo Charger
Air and Scale Superiority
The F-16 Fighting Falcon was originally developed for the U.S. Air Force and approved for production more than 40 years ago. This multirole fighter’s advancements in technology and capabilities have kept it active to the present day with air forces worldwide. The E-flite® F-16 Falcon 80mm EDF (Electric Ducted Fan) is an Extra Scale model based on the single seat F-16C variant which entered production in 1984. The F-16C brought improved cockpit avionics and radar for all-weather capability with beyond-visual-range AIM-7 and AIM-120 air-to-air missiles. This replica is nearly as large as other 90mm EDF models, yet the efficient power system delivers better overall performance and longer flight times when using common 6S 4000–7000mAh batteries. The 3-tone gray finish is easy to customize using your choice of the included squadron markings while Extra Scale details and functional features — including the most scale-like landing gear installed on an F-16 EDF model yet — combine to deliver an unmatched flying experience!
High Performance Fighting Falcon
The E-flite® F-16 Falcon 80mm EDF jet is the Smartest, most detailed and best handling high-performance replica of the world-renowned fighter yet! Extra Scale details, including molded-in panel lines, simulated antennas, indicators, sensors, optional-use ordnance, and more take realism to the next level. Functional Extra Scale features include LED navigation and landing lights, full-flying stabs, sequenced gear doors plus the most scale-like retractable landing gear installed on an F-16 EDF model yet. Both versions include nine factory-installed digital, metal-geared servos, and with the ARF Plus version you can install the compatible receiver and an 80mm EDF power system of your choice — from another similar class model or using other compatible components. The BNF® Basic version comes factory-equipped with a Spektrum™ AR637TA receiver that includes exclusive AS3X® and optional-use SAFE® Select technologies, along with a V2 12-blade 80mm fan, high-power 2100Kv brushless inrunner motor and a 100-amp Avian™ Smart ESC to deliver fantastic performance with popular 6S 4000–7000mAh LiPo batteries. This efficient power system provides better performance and longer flight times than the 6S-compatible power systems used in similar sized models powered by 90mm EDFs. The ESC and receiver supply real-time battery voltage, motor RPM and other telemetry data via compatible transmitters. Constructed of durable, fully-molded EPO, this F-16 assembles without glue and can be ready to fly in less time than other similar class models!
Video Overview
Features
- Scale replica of the world-renowned fighter flown by the U.S. and numerous allied air forces
- The Smartest, most detailed and best handling high-performance F-16 EDF (Electric Ducted Fan) jet model yet
- Factory-applied 3-tone gray trim scheme with decal sheets to apply four different choices of squadron markings
- Extra Scale details including molded-in panel lines, simulated antennas, indicators, sensors and much more
- Functional Extra Scale features including LED navigation and landing lights, full-flying stabs and more
- Includes optional-use and easy to install/remove ordnance including six missiles and three drop tanks
- V2 12-blade 80mm fan delivers excellent top speed and vertical performance plus turbine-like sound
- Factory-installed, high-power 6S-compatible 2100Kv brushless inrunner motor and 100-amp ESC
- 100-amp Spektrum™ Avian™ Smart ESC provides real-time battery voltage, motor RPM and other data via compatible receivers and transmitters
- Fits a wide range of 6S batteries from 4000-7000mAh to deliver class-leading flight times and performance
- Spektrum™ AR637TA receiver with full-range telemetry and industry-leading DSMX® technology
- Easier to fly with innovative and optional-use SAFE® Select flight envelope protection
- The unmatched stability and locked-in feel of exclusive AS3X® technology
- Nine factory-installed digital, metal-geared servos with ball-link equipped linkages
- Electric retracts with scale-like painted, articulated and shock-absorbing struts
- Sequenced, servo-operated nose and main gear doors with molded in details
- Plastic capped strakes, hatch edges and opening for added durability to prevent damage and paint chipping
- No glue required for assembly and can be ready to fly in less time than it takes to charge a battery
- Two-piece wing that bolts into place and a magnetically secured nose cone
- Convenient top hatch with clear canopy, cockpit detail and a pilot figure
- Optional simulated afterburner LED ring available separately
- Extremely durable, fully molded EPO airframe
Exclusive Technologies
This high-performance F-16 Falcon model is equipped with exclusive Spektrum™ AS3X® and SAFE® Select technologies. AS3X works behind the scenes to smooth out the effects of wind and turbulence to deliver a locked-in feel that makes it seem like you're flying a much larger airplane. Optional-use SAFE Select offers pitch and bank angle limits along with automatic self-leveling that can be turned on and off at the flip of a switch to make this an easier to fly Falcon! And if you don't want to enable the SAFE Select features, simply bind the receiver normally and only AS3X will be active.
High-Performance EDF
The V2 12-blade 80mm fan, high-power 2100Kv brushless inrunner motor and 100-amp ESC combine with your 6S 4000–7000mAh 30+C LiPo battery to deliver great vertical performance and a fantastic speed range with virtually instantaneous throttle response. This efficient power system also delivers better performance and longer flight times than the 6S-compatible power systems used in 90mm class models. But what makes the experience truly rewarding is the fantastic sound it produces – it's almost like a real turbine.
Extra Scale Details

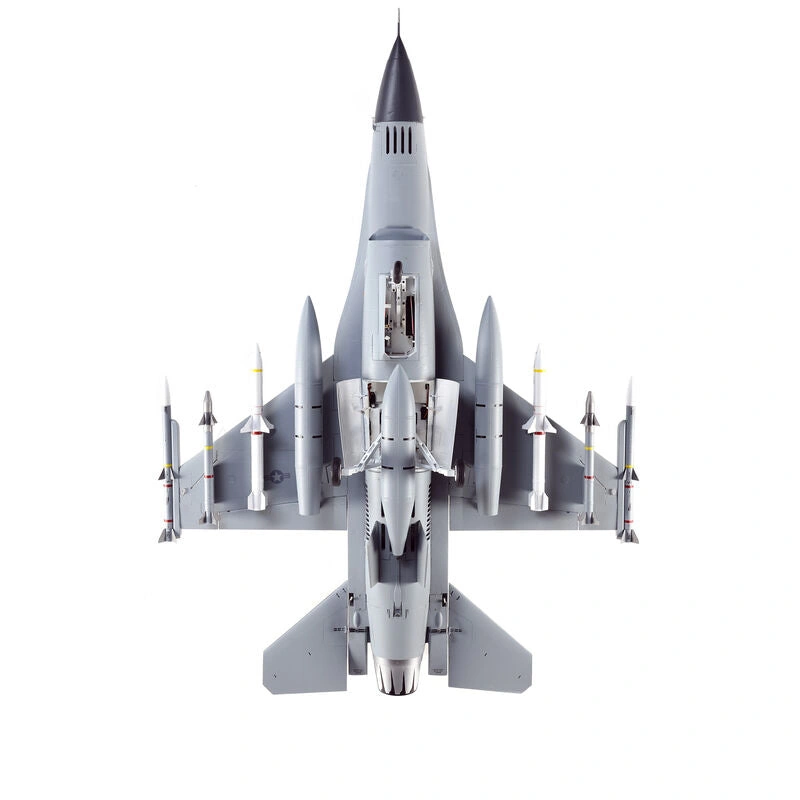

The F-16 Falcon 80mm EDF features an accurate outline and an abundance of Extra Scale details including molded-in panel lines and hatches, simulated antennas, indicators, sensors and much more. And, unlike other similar class models that require you to spend more to buy them separately, it includes a full complement of optional-use and easy to install/remove ordnance including six missiles plus three drop tanks.
Functional Extra Scale Features
Factory-installed LED navigation and landing lights, full-flying stabs, control surfaces with pocket hinges – even sequenced main gear and nose gear doors – are functional Extra Scale features that take your experience to another level. An optional simulated afterburner LED ring is also available separately to further enhance your experience.
Extra Scale Gear
The reliable, factory-installed electric retracts are equipped with durable metal components including Extra Scale painted, articulated and shock-absorbing struts. It's the most scale-like landing gear installed on an F-16 EDF model yet! The sequenced and servo-operated gear doors feature molded details on the inside, and the nose gear door is also equipped with an LED landing light that turns on and off automatically when the gear is extended or retracted.
Detailed Durability
Construction with fully molded EPO material makes it possible to replicate complex details and shapes in a lightweight yet durable form. The result is an outstanding scale appearance that's easy to maintain and delivers the best possible flight experience. Plus, the plastic capped strakes, hatch edges and opening improve durability to prevent damage and paint chipping during handling and when installing/removing batteries.
Precise Control
A total of nine factory-installed digital, metal-geared servos, along with ball-link equipped linkages on all primary flight controls, deliver crisp, precise and reliable control at every speed.
Easy Assembly
No glue is required for assembly and you can have the F-16 ready to fly in less time than it takes to charge a battery! The stabs plus the two-piece wing bolt into place and can easily be removed for convenient storage and transport.
Customizable Trim Scheme
Decal sheets with four different choices of squadron markings are included so you can customize the factory-painted 3-tone gray finish. The choices include:
- South Carolina Air National Guard (based at Shaw Air Force Base) 79th Fighter Squadron - Leader, 20th Fighter Wing, Tiger Meet Version
- South Carolina Air National Guard (based at Shaw Air Force Base) 77th Fighter Squadron, 20th Fighter Wing, Wild Weasel 50th Anniversary Version
- South Carolina Air National Guard (based at Shaw Air Force Base) 157th Fighter Squadron, 169th Fighter Wing (Swamp Foxes), Wild Weasels 50th Anniversary Version
- Ohio Air National Guard (based at Ohio National Guard Base) 112th Fighter Squadron, 180th Fighter Wing, Stingers Version
- Or you can apply paint and custom-made graphics to personalize the finish and trim scheme!
Product Specifications
| LiPo Compatibility | 6S |
| Completion Level | Bind-N-Fly Basic |
| Approximate Assembly Time | Less than 1 hour |
| Material | EPO |
| Retracts | Included |
| Technology | AS3X and SAFE |
| Trim Scheme Colors | Gray, with 4 decal sets |
| Wingspan | 39.37' (1000 mm) |
| Power Type | Electric |
| Servos | Included |
| Skill Level | Level 3 |
| Minimum Required Radio | At least 6-channel |
| Radio | Sold Separately |
| Battery | Sold Separately |
| Motor Size | 3280-2100Kv 4-pole Inrunner (installed) |
| Product Length | 57.08' (1450 mm) |
| Product Weight | 5.9 lbs (2665 g) without battery; 7.4 lbs (3375 g) with 6S 5000mAh 30C battery (sold separately) |
| Fan Size | 80mm EDF |
| Speed Control | Included |
| Charger | Sold Separately |
| Receiver | Included |
