Eclipse 360: Unleash Your Inner Pilot - AS3X & SAFE Ready to Fly
Alright, partner, saddle up and feast your eyes on this here… a genuine piece of Americana you won't wanna miss! This ain't just somethin' you buy, it's a statement, a whisper of the wild west, a promise of good times and maybe even a little bit of mischief. Feel that urge to wander, that pull towards somethin' real? Well, this right here's your ticket. So go on, treat yourself. You deserve it, ya hear? Grab it before it rides off into the sunset!

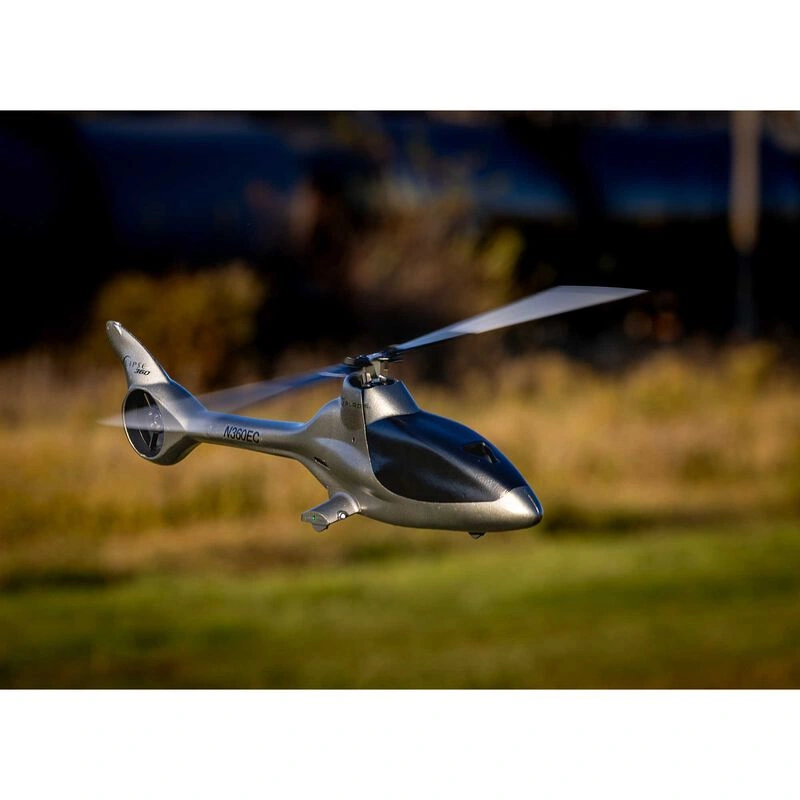

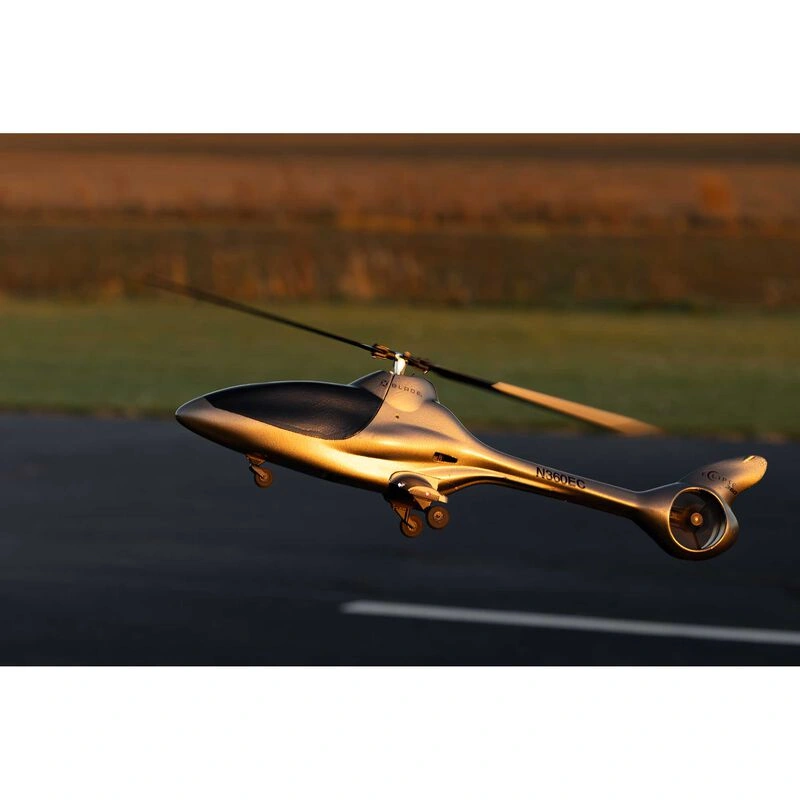

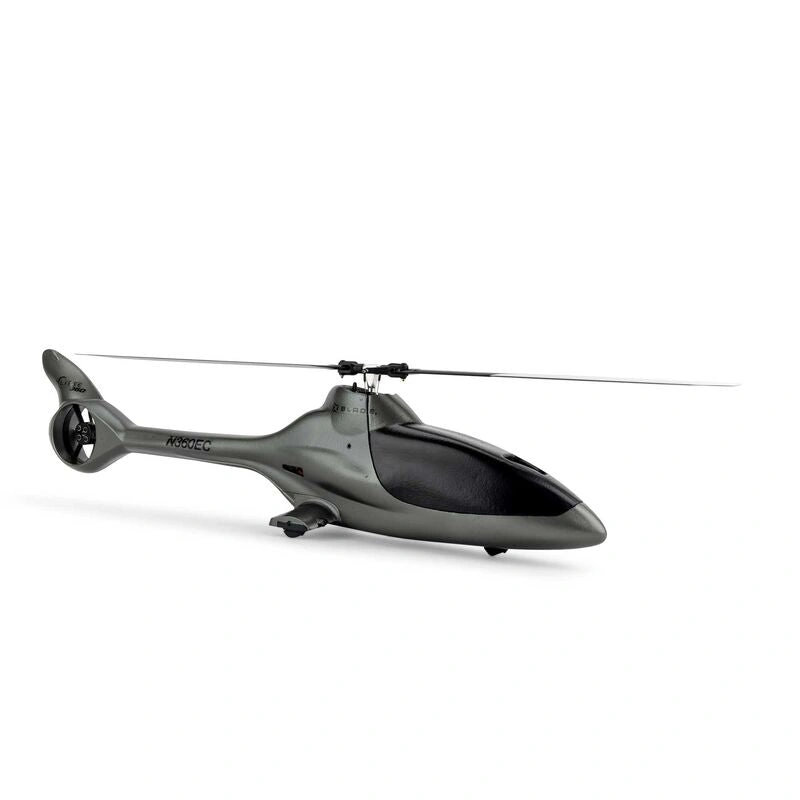

The Blade® Eclipse 360 combines a fully-molded EPO body with futuristic looks and a high-performance airframe to deliver a unique blend of hovering, scale-like, sport, and aerobatic flying capabilities for intermediate to experienced heli pilots.
- An innovative blend of futuristic looks and high performance to deliver a unique helicopter flying experience
- A lightweight yet durable, fully molded and painted EPO body featuring LED navigation and landing lights
- Low-profile skids plus an optional-use wheel set for a different look and ground handling experience
- Factory-installed Spektrum FC6250HX flybarless flight controller featuring exclusive AS3X and SAFE technologies
- Compatible with popular and common 3S 2200–3200mAh LiPo batteries
In The Box
- (1) Blade Eclipse 360 with:
- (1) Brushless Outrunner Tail Motor (installed)
- (1) Brushless Outrunner Main Motor (installed)
- (3) Spektrum Digital, Metal-Geared Servos (installed)
- (1) Spektrum 6250HX Flybarless Control System (installed)
- (1) Spektrum 4651T 2.4GHz DSMX® Receiver with Telemetry (installed)
- (1) Spektrum Dual 30A Main and 15A Tail Brushless Smart ESC (installed)
- (1) Main Blade Holder
- (1) Product Manual
Needed to Complete
- Full-range 6+ channel Spektrum DSMX®/DSM2® compatible transmitter (programmable for helicopters)
- 3S 11.1V 2200–3200mAh LiPo with EC3™ or IC3® Connector
- Compatible LiPo charger
Features
- An innovative blend of futuristic looks and high performance to deliver a unique helicopter flying experience
- A lightweight yet durable, fully molded and painted EPO body featuring LED navigation and landing lights
- Low-profile skids plus an optional-use wheel set for a different look and ground handling experience
- Spektrum Dual Smart ESC provides real-time battery voltage, motor RPM, and other data to compatible transmitters
- Factory-installed Spektrum FC6250HX flybarless flight controller featuring exclusive AS3X and SAFE technologies
- Easier to fly with innovative and optional-use SAFE flight envelope protection
- The unmatched stability and locked-in feel of exclusive AS3X technology
- Factory-installed digital, metal-geared cyclic servos with precise ball-link equipped linkages
- Two Spektrum brushless outrunner motors deliver excellent performance and flight times
- Convenient, magnetically-secured canopy/hatch with a large battery compartment
- Compatible with popular and common 3S 2200–3200mAh LiPo batteries
- Aluminum head block and carbon fiber main rotor blades
- Fully factory-assembled and nearly ready to fly right out of the box
Overview
An innovative blend of futuristic looks including a fully molded and painted EPO body wrapped around a high-performance airframe makes the Blade® Eclipse 360 an eye-catching addition to any RC pilot’s collection. It’s designed to be capable of smooth hovering plus scale-like and sport flying for intermediate pilots, yet is also capable of aerobatics and even mild 3D in the hands of experienced pilots. The expertly-tuned FC6250HX flybarless control system includes optional-use SAFE technology for angle limits and automatic self-leveling to help prevent crashes in Normal mode, and no limits in all other flight modes – plus Panic Recovery to “bail out” at the push of a button if you ever need it! The powerful brushless main and tail motors are connected to a Spektrum Dual Smart ESC that delivers real-time telemetry data to AirWare™ equipped transmitters, and they’re compatible with common and popular 3S 2200–3200mAh batteries. Digital, metal-geared servos, an aluminum head block, and carbon fiber main rotor blades deliver reliable and precise control for the factory-assembled airframe. The lightweight yet durable body is equipped with LED navigation and landing lights along with hard mounting points for the low-profile skids that provide a streamlined “gear up” look, or you can install the included wheel set for a different look and ground handling experience. And it’s all delivered in a model that’s ready to bind to your favorite Spektrum transmitter to offer a unique helicopter flying experience you can’t get anywhere else!
Video Overview
Skill Level 2 – Some Experience Required
Skill Level 2 aircraft, like this one, are suitable for RC pilots with some experience and the skills to assemble and/or set up and fly similar class models. Although the Eclipse 360 is equipped with optional-use SAFE technology, it’s not a suitable first-ever RC helicopter for new pilots or “next step after a trainer” model for low-time RC pilots. You should have the experience and skills necessary to successfully fly Collective Pitch (CP) helicopters like the Blade 230, 330, Fusion 360, or other similar class models before attempting to fly the Eclipse 360.
Bind-N-Fly Completion Level Advantage
Already own a Spektrum™ transmitter? Bind-N-Fly (BNF) aircraft make getting into the air quickly and with the best control experience possible easier than ever. They come out of the box with the power system, servos, and a Spektrum 2.4GHz receiver installed, so all you need to do is bind the receiver to a compatible transmitter, finish any final assembly, and fly!
Exclusive Technologies
The factory-installed and expertly-tuned FC6250HX flybarless flight controller features exclusive Spektrum™ AS3X® and SAFE® technologies. Optional-use SAFE technology features angle limits and automatic self-leveling to help prevent crashes in Normal mode. AS3X smooths out the effects of wind and turbulence with no limits or self-leveling in all other flight modes so you can fly inverted and perform aerobatics too. Plus, you can use Panic Recovery to “bail out” at the push of a button if you ever need it!
Telemetry Capable
The Eclipse 360 is equipped with a Spektrum Smart ESC, flight controller, and a receiver that provides – with Smart and non-Smart batteries – real-time overall flight battery voltage, motor RPM, and other telemetry information to compatible Spektrum AirWare equipped transmitters (including the DX6e and 8e, DX6 G2/G3 and 8 G2, the DX9, NX6 to 20, the iX12 to 20, and others) while you fly.
Durable Precision

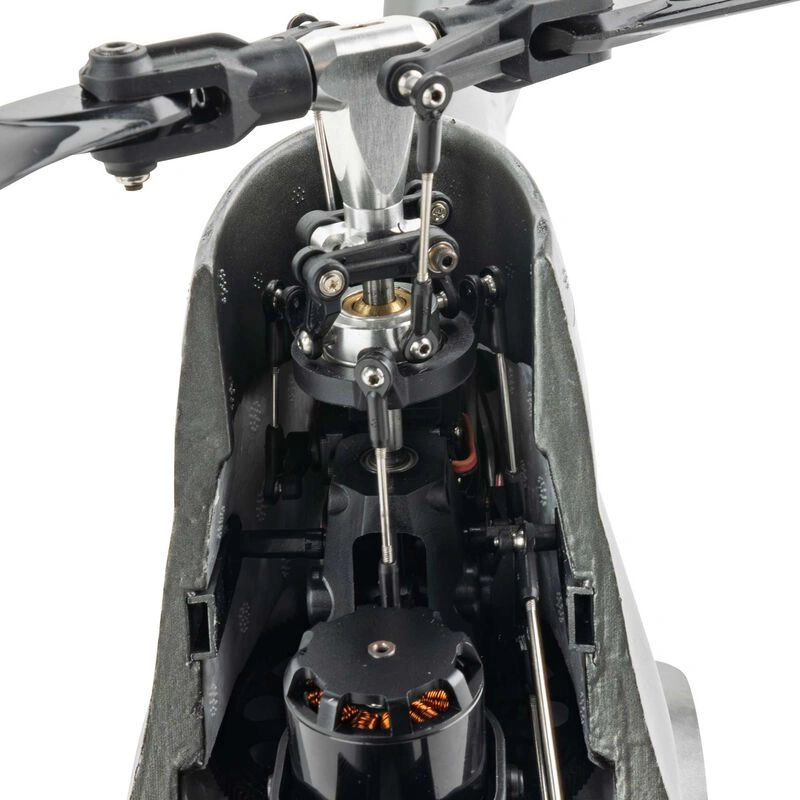

Digital, metal-geared cyclic servos, an aluminum head block, and carbon fiber main rotor blades deliver excellent durability and precise control.
Collective Pitch
The collective pitch main rotor mechanics offer smooth control to deliver a unique blend of hovering, scale-like, sport, and aerobatic flying capabilities.
High Power
The powerful brushless main and tail motors are connected to a factory-installed Spektrum Dual Smart ESC and are compatible with common and popular 3S 2200–3200mAh batteries.
Unique Body

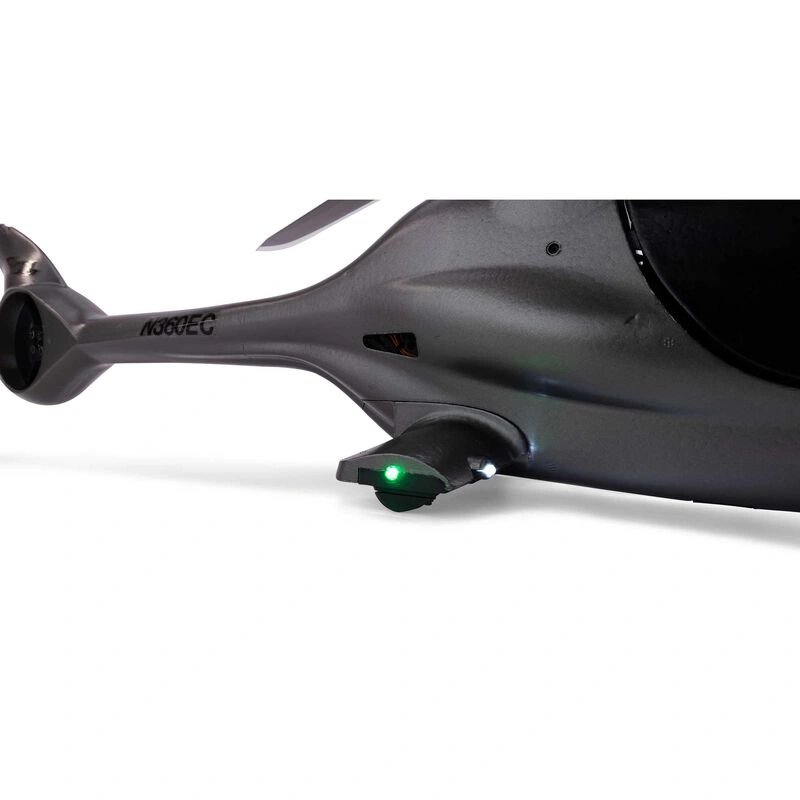

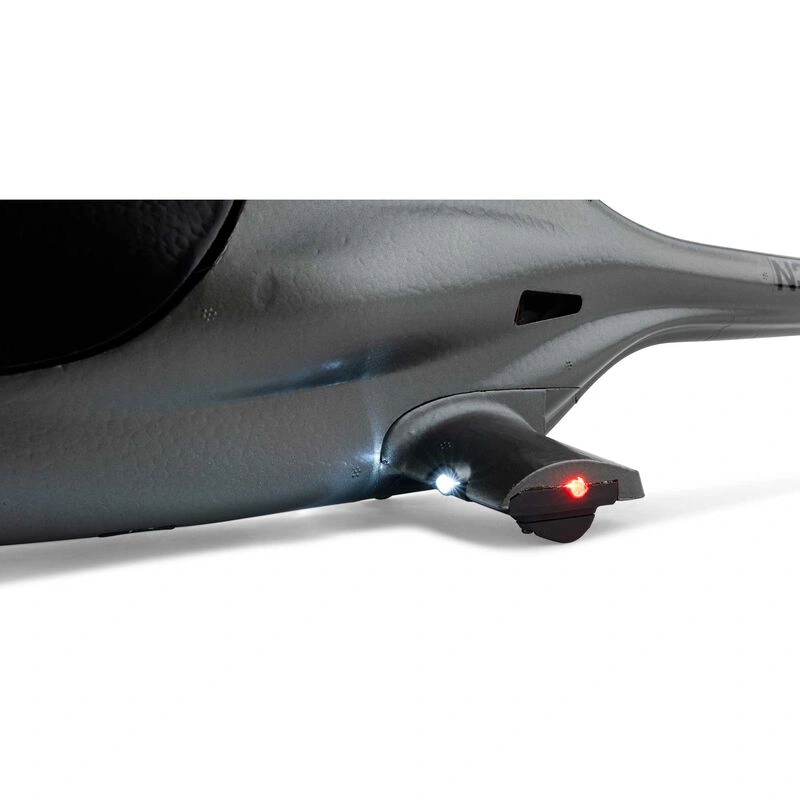

The lightweight yet durable body is molded from EPO and fully-painted to provide a unique and futuristic look. It’s also equipped with LED navigation and landing lights for improved visibility.
Gear Options

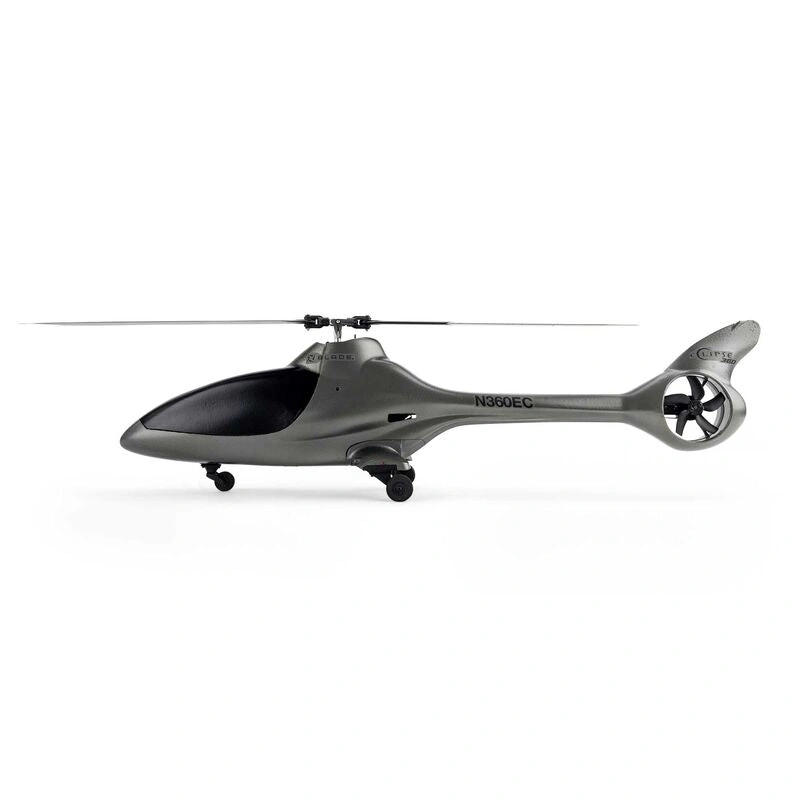

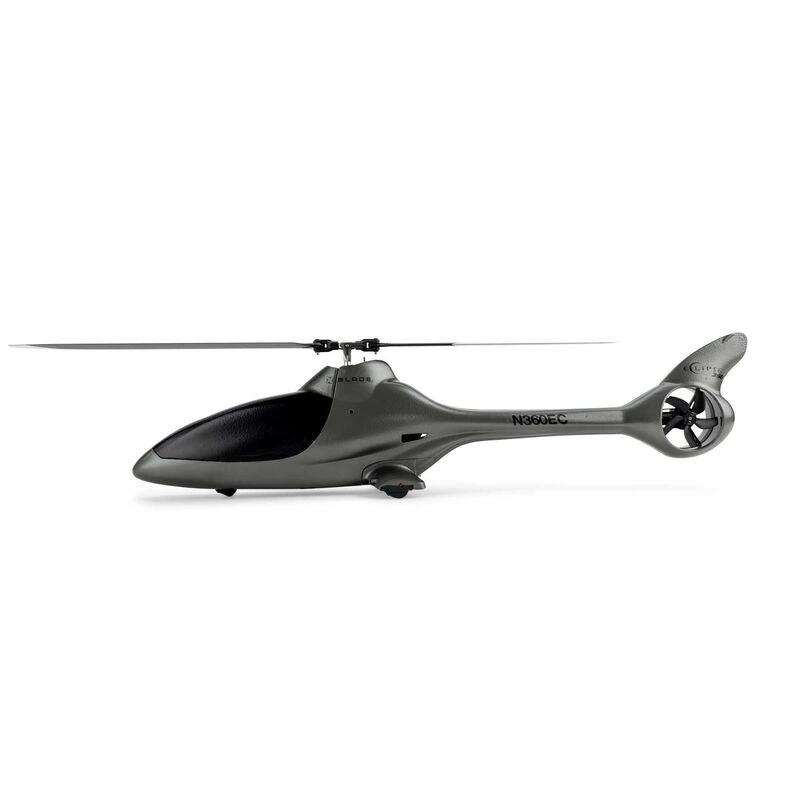

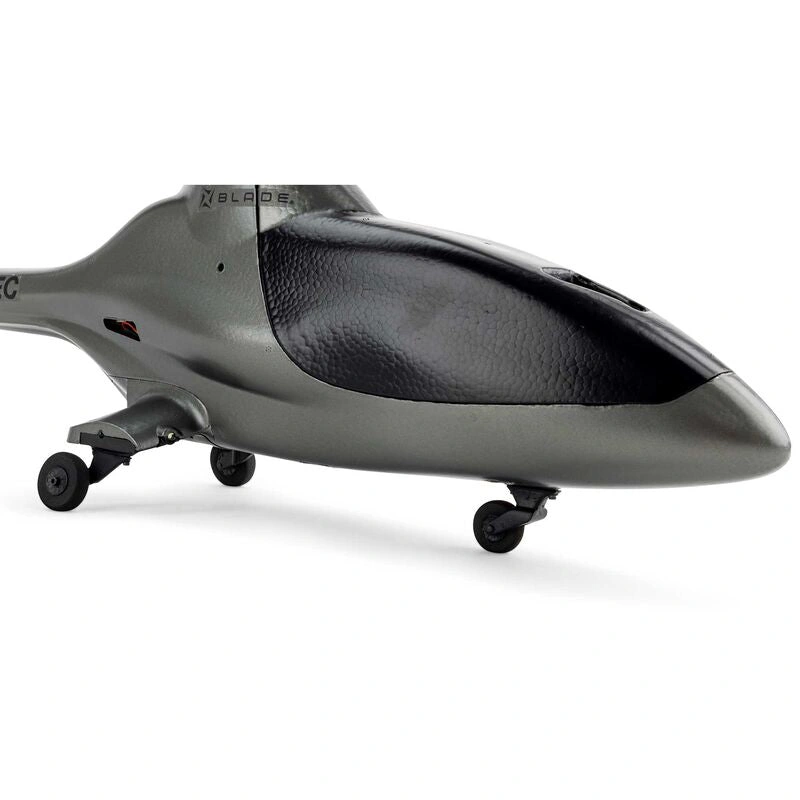

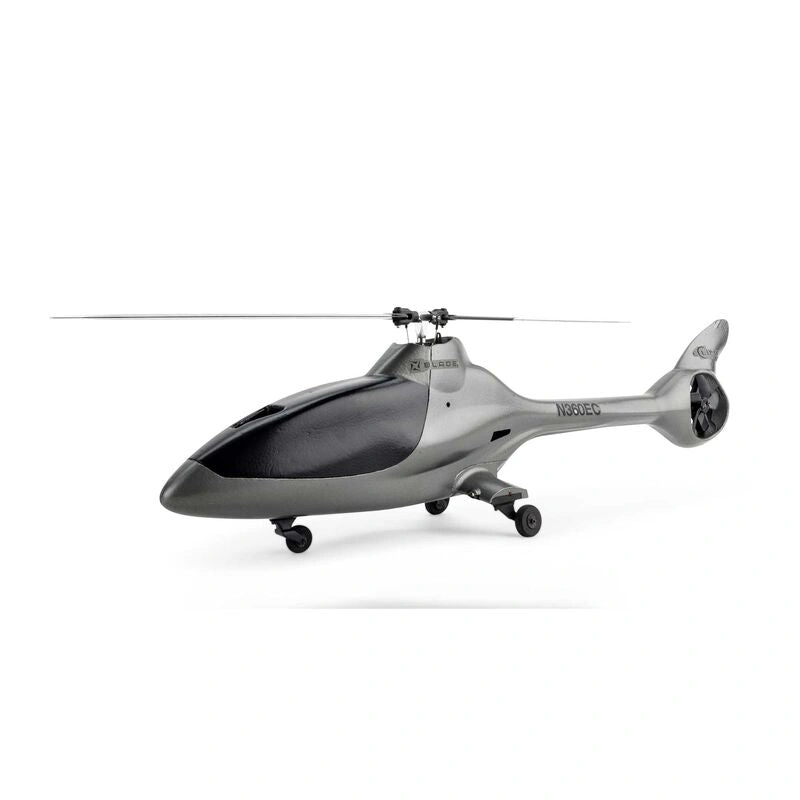

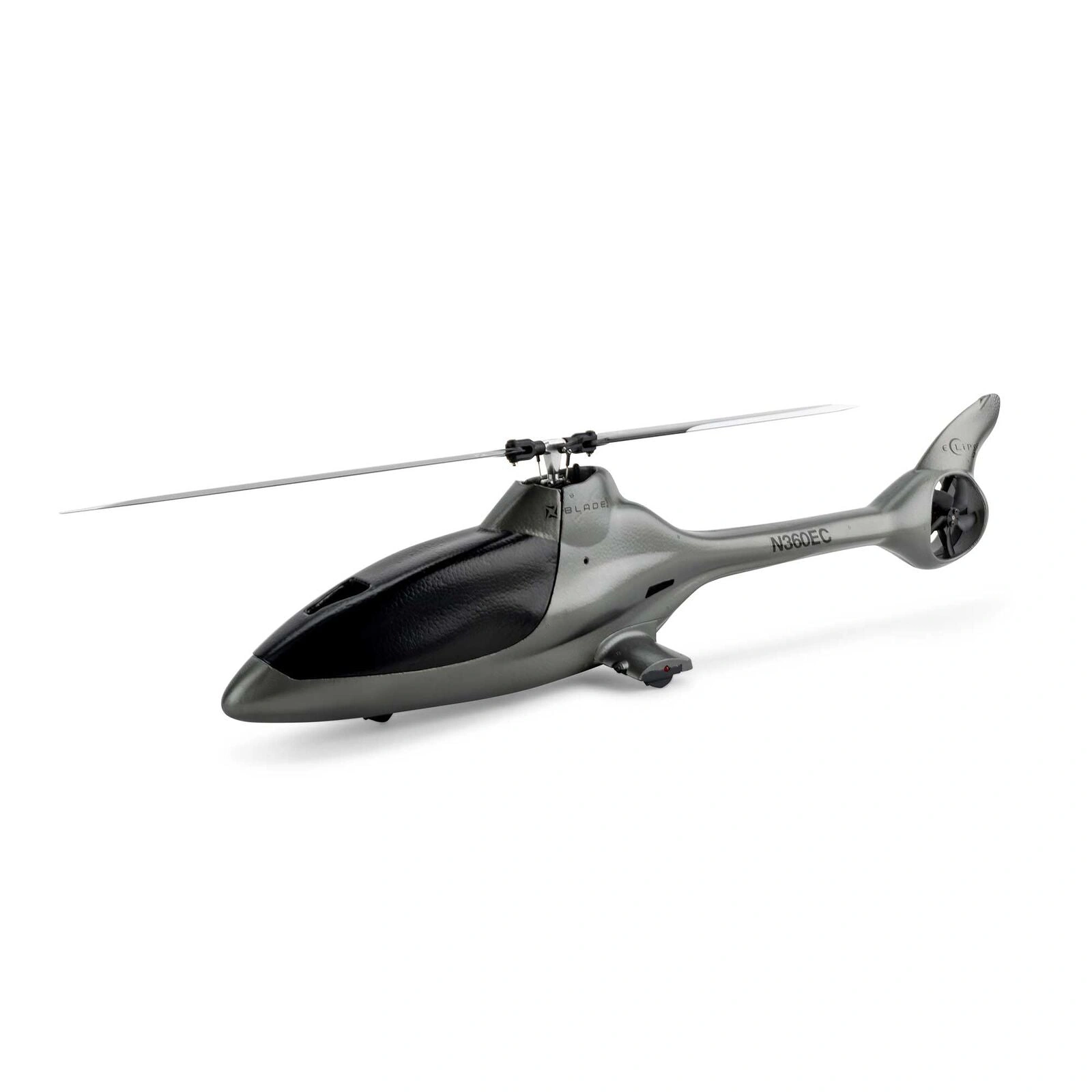

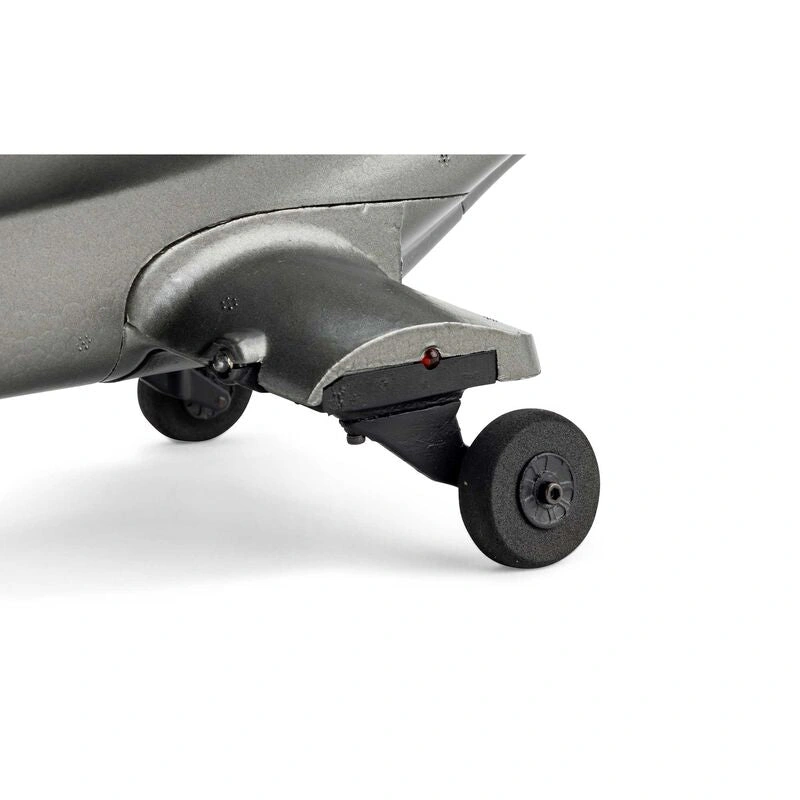

Factory-installed low-profile skids offer a streamlined “gear up” look and work great for takeoffs and landings on smooth surfaces. Or you can install the included optional-use wheel set for a different look and ground handling experience on smooth, grass, and other surfaces.
Fully Assembled
The Eclipse 360 arrives 100% factory-assembled and nearly ready to fly right out of the box! It’s equipped with industry-leading Spektrum™ 2.4GHz technology that binds to your 6+ channel DSMX®/DSM2® equipped transmitter so you can be flying in almost no time after opening the box.
Product Specifications
| Power Type | Electric |
| Servos | Included |
| Skill Level | Level 2 |
| Swashplate Type | 120 Degree CCPM |
| Approximate Assembly Time | Fully factory-assembled |
| Tail Drive | Direct Drive |
| Main Motor Type | Brushless |
| Charger | Sold Separately |
| Channels | 6 |
| Main Rotor Blade Length | 13.78' (350 mm) |
| Speed Control | Included |
| Battery | Sold Separately |
| Product Length | 30.8' (782 mm) |
| Completion Level | Bind-N-Fly Basic |
| Main Blade Material | Carbon Fiber |
| Main Rotor Diameter | 30.6' (777 mm) |
| Product Height | 7.6' (193 mm) |
| Recommended Motor Battery | 3S 11.1V 2200–3200mAh LiPo with EC3 or IC3 Connector |
| Tail Blade Material | Plastic |
| Product Weight | 33 oz [935 g] Flying Weight |
| Main Rotor Head Type | Collective Pitch Flybarless |
| Product Width | 4.7' (119 mm) |
| Tail Rotor Diameter | 3' (76 mm) |
| Technology | Smart, AS3X and SAFE |
| Receiver | Included |
| Tail Motor Type | Brushless Outrunner |
