Product Detail

Introduction
When it comes to air superiority, none have yet succeeded against the one and only F-15 Eagle in air-to-air combat. So advanced and formidable, the F-15 is expected to log a 60-year long service life. The E-flite® F-15 Eagle 64mm EDF jet is a potent replica of the McDonnell Douglas design that makes it possible to enjoy the thrill of flying an air superiority fighter of your own. It's also the easiest F-15 model to fly when equipped with AS3X® and SAFE® Select technologies (BNF® Basic version only).

Key Features
The easiest to fly high-performance F-15 Eagle EDF (Electric Ducted Fan) jet model yet
Scale replica of the world-renowned air superiority fighter flown by the U.S. Air Force
11-blade 64mm fan delivers great vertical performance and top speed plus turbine-like sound
Factory-installed high-power 4S-compatible brushless motor, 40-amp ESC and 5 servos
Spektrum™ 6-channel 2.4GHz receiver with industry-leading DSMX® technology
Unmatched stability and precision of AS3X® technology for smoother flight performance
Easy to fly with optional-use SAFE® Select flight envelope protection
Optional-use fixed landing gear with steerable nose wheel
Bolt-on wings with removable tanks and missiles
Magnetically-secured nose cone and top hatch
Durable yet lightweight molded EPO airframe
Needed to Complete
Full-range 5+ channel DSMX®/DSM2® transmitter
4S 14.8V 2200mAh 30+C LiPo with EC3™ or IC3™ Connector (SPMX22004S30 recommended)
Compatible LiPo charger
What's in the Box?
(1) E-flite F-15 Eagle 64mm EDF with:
(1) 40A Brushless ESC
(1) 3150Kv Brushless Outrunner Motor
(5) 9-Gram Servos
(1) Spektrum™ AR636 6-Channel Receiver
(1) Product Manual
Overview

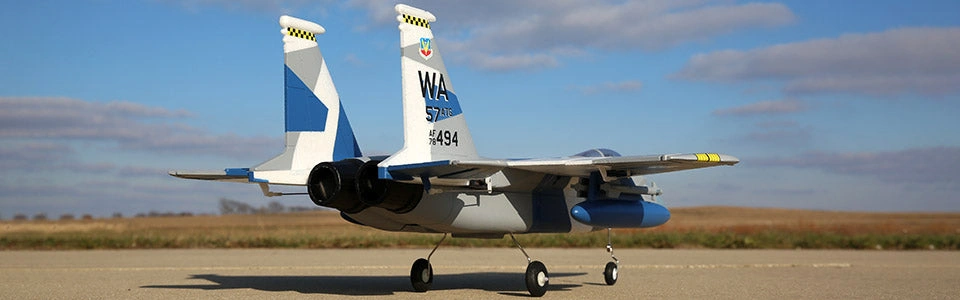

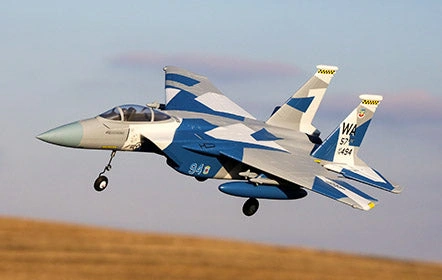

The E-flite® F-15 Eagle 64mm EDF jet is a replica of the world-renowned air superiority fighter flown by the U.S. Air Force. It's equipped with a 4S-compatible brushless motor and a 40-amp ESC that are matched to an 11-blade fan to deliver fantastic speed, thrust and a turbine-like sound. The factory-installed power system and servos help make it quick and easy to assemble the lightweight yet durable EPO airframe with bolt-on wings so you can be flying in less time than it takes to charge a battery. Optional-use fixed landing gear with a steerable nose wheel is included so you can taxi, take off and land on runways, or you can leave the landing gear off for improved performance plus easy hand launches and landings on grass. You can also fly with or without the wing-mounted drop tanks and missiles depending on the look and handling you prefer. And it all adds up to deliver one of the easiest to enjoy and easiest to fly Eagle models ever!

Exclusive Technologies
This is the first high-performance F-15 model equipped with exclusive Spektrum® AS3X® and SAFE® Select technologies. AS3X works behind the scenes to smooth out the effects of wind and turbulence to deliver a locked-in feel that makes it seem like you're flying a much larger jet. Optional-use SAFE Select offers pitch and bank angle limits along with automatic self-leveling that can be turned on and off at the flip of a switch making this the easiest to fly Eagle yet! And if you don't want to enable the SAFE Select features, simply bind the receiver normally and only AS3X will be active.

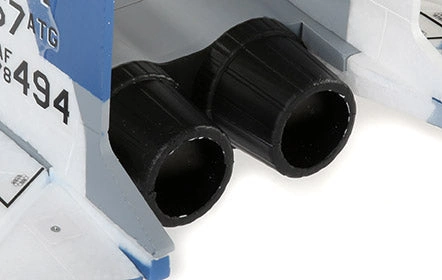

High-Power EDF
The 11-blade 64mm fan, high-RPM brushless motor and 40-amp ESC combine with your 4S 2200mAh LiPo battery to deliver great vertical performance and a fantastic speed range with virtually instantaneous throttle response. But what makes the experience truly rewarding is the fantastic sound produced by the power system- it's almost like a real turbine.

Gear Options

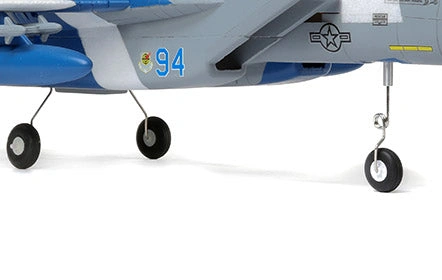

You can install the included fixed landing gear with steerable nose wheel to taxi, take off and land on smooth surfaces. Or you can leave the landing gear off for more speed and vertical performance plus easy hand launches and landings on grass.

Unique Trim Scheme

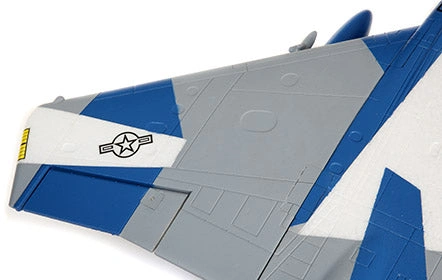

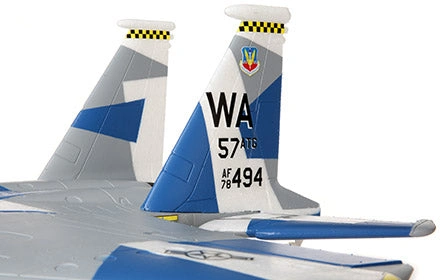

The factory-applied paint and decal finish replicates the aggressor squadron “splinter” trim scheme found on F-15s used to act as an opposing force while providing a realistic simulation of air combat.

Durable Design
Construction with molded EPO material makes it possible to replicate complex detail and shapes in a lightweight yet durable form. The result is an outstanding scale appearance that's easy to maintain and delivers the best possible flight experience.

Compact Convenience
Although the F-15 Eagle 64mm EDF is compact enough to transport in just about any vehicle in one piece, it features bolt-on wings and a magnetically-secure nose cone that are easy to remove/install for even more convenient transport and storage.

Bind-N-Fly Completion Level Advantage
Already own a Spektrum™ transmitter? Bind-N-Fly (BNF) aircraft make getting into the air quickly and with the best control experience possible easier than ever. They come out of the box with the power system, servos and a Spektrum 2.4GHz receiver installed so all you need to do is bind the receiver to a compatible transmitter, finish any final assembly, and fly!

This Bind-N-Fly Basic model is equipped with a Spektrum 2.4GHz DSMX® receiver featuring AS3X (Artificial Stabilization–3-aXis) technology that works behind the scenes to smooth out the effects of wind and turbulence so you enjoy a sense of stability and precision that makes it feel like you're flying a much larger, expertly tuned aircraft.

If this is your first model of its type, or you want an extra margin of safety while familiarizing yourself with the airplane, you can enable the optional-use SAFE® Select flight envelope protection technology built into the receiver. No programming is required. Simply change up the binding sequence as directed in the manual.

With SAFE Select enabled, you get:

Pitch and Bank Angle Limits

These envelope limits keep the airplane from rolling or pitching upside down. They also prevent excessive climb or dive angles.
Automatic Self-Leveling

The airplane instantly returns to and holds level flight when the sticks are released and in the center position. It's also helpful for keeping the wings level during takeoffs/launches and landings.
Easy Switch Assignment- No Programming Required

The simple procedure for assigning a transmitter switch to turn SAFE Select features on and off doesn't require any programming and takes just a few seconds.
If you don't want to enable the SAFE Select features, just bind the receiver normally and it will function like a standard AS3X receiver.

Specs
Airfoil Shape Semi-symmetrical
Approximate Assembly Time Less than 1 Hour
CG (Center of Gravity) 3.3-3.5' (85-90mm)
Completion Level Bind-N-Fly Basic
Fan Size 64mm EDF
Power Type Electric
Landing Gear Wire nose gear and main gear foam wheels
Material EPO
Minimum Required Radio 6-channel
Motor Size 2840-3150 Brushless Outrunner included
Product Length 38.6' (980mm)
Receiver Included
Recommended Motor Battery 4S LiPo, 2200-2600mAh
Servos Five 9g included
Speed Control Included
Trim Scheme Colors Gray, blue and white
Wingspan 28.15' (715mm)
