Red Fury Unleashed Hobbywing XeRun XD10 Pro ESC Ignite Your Drift Game Now!

Alright, buckle up buttercup, because this ain't your grandma's toaster. We're talking pure unadulterated awesome. This thing, whatever it is, is a goddamn symphony of style and substance. It's the missing piece in your life, the cherry on top of your already fabulous sundae. Trust me, you need this more than air. So ditch the boring, embrace the bold, and click that damn "buy now" button. Your future self will thank you for it. You're welcome.

$79.50 $159.00

num:

description

Enjoy reliable performance with the Hobbywing Xerun XD10 Pro ESC in red. It's equipped with a built-in switch mode BEC with up to 10A max output and voltage adjustment from 5V to 7.4V. A separate PRG/FAN port helps maintain optimal cooling performance, and variable frequency regulations let you customize the driving and braking forces of the motors. It also comes with multiple protections, including low-voltage cutoff, ESC/motor thermal protection, and fail-safe/throttle signal loss protection. Plus, data logging records maximum data.

Features:

Built-in switch mode BEC with a maximum output of 10A and voltage adjustable from 5V to 7.4V (step: 0.1V) for usage with servos & other devices require different voltages.

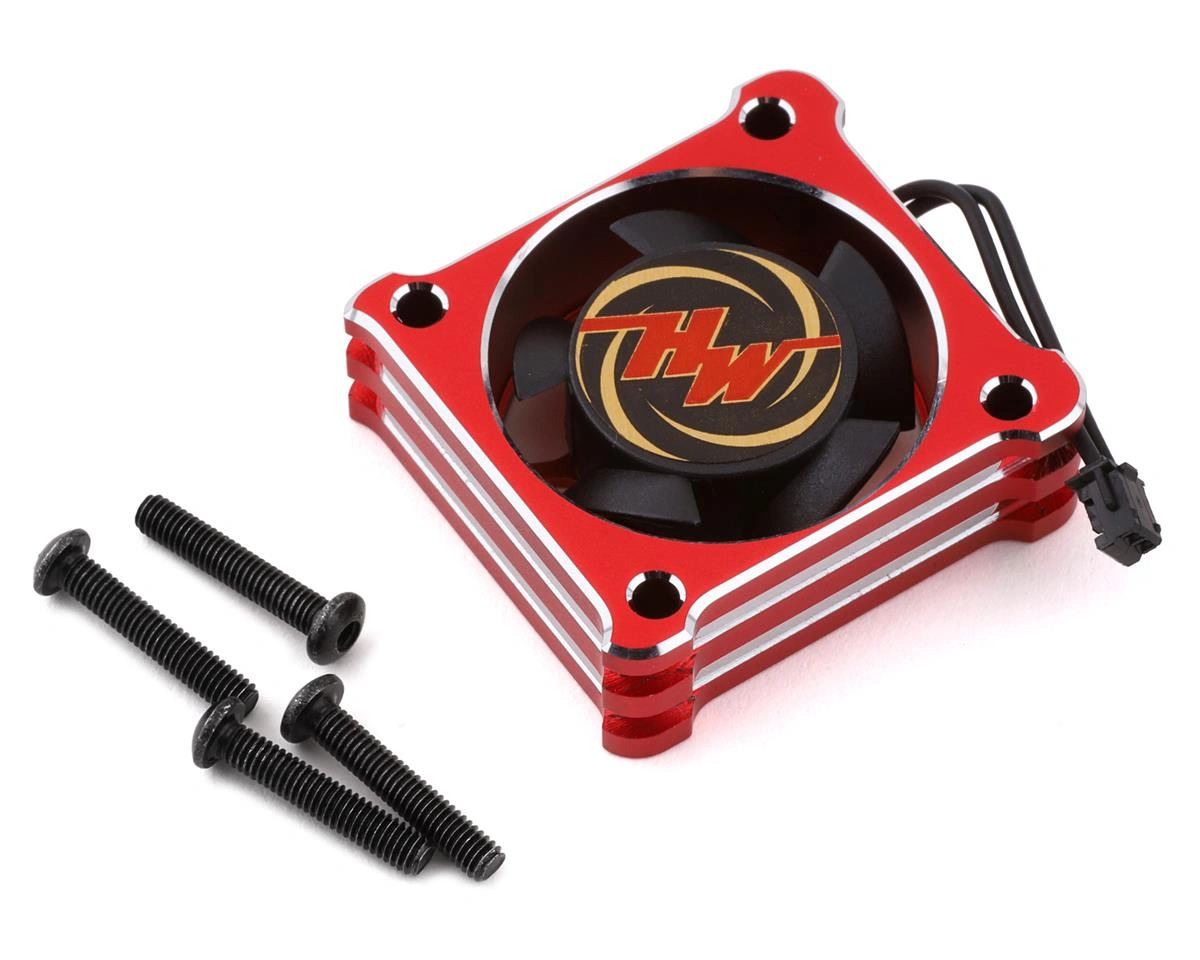

A separate PRG/FAN port is able to power an external fan to maximize cooling performance or connect an LCD program box or WiFi module to the ESC.
Variable frequency regulation of PWM & brake frequencies allows users to precisely regulate the driving & braking forces (of the motors).
Multiple protections: low-voltage cutoff protection, ESC and motor thermal protection, and fail-safe (throttle signal loss protection), reverse polarity protection (the external standard cap pack will still be damaged if battery reversal occurs).
Data logging for recording the maximum ESC/motor temperature, motor speed/RPM, and others in real-time.
Firmware upgrade via Hobbywing multifunction LCD program box (PC only) or OTA Programmer (item sold separately)

Specifications:

Application: 1/10th drift car

Cont./Peak Current: 100A/800A

Input Voltage: 2S LiPo/4-6S NiMH

BEC Output: 5-7.4V Adjustable, Continuous Current of 5A (Switch-mode)

Wires & Connectors: 13AWG 200mm

Programming device: LCD program box, OTA programmer (Available through Firmware update)

Firmware: LCD Program box via USB software (PC only), OTA (iOS / Android)

Size & Weight: 40.7x35.0x32.0mm (w/Fan)

Weight: 95g (w/ wires)

Motor Limit: 2S LiPo/6S NiMH ?8.5T

Includes:
